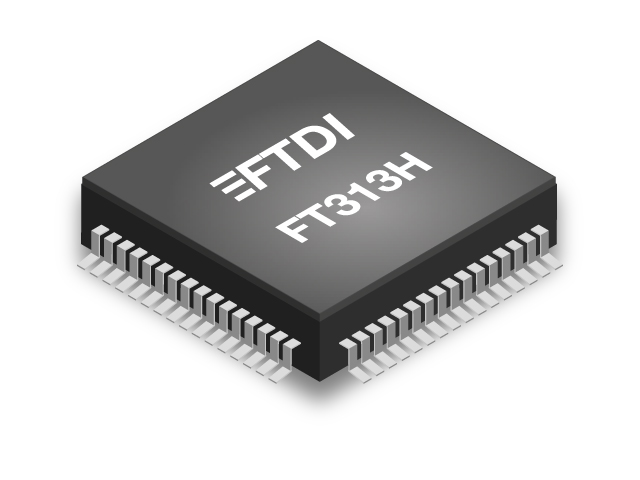

 FT313H – Hi-Speed Host Controller

The FT313H is an enhanced general purpose USB2.0 Hi-Speed USB Host controller designed for integration with microcontrollers via parallel bus options and offering battery charger emulation on the downstream port to support higher charging currents.

 Key Hardware Features
  • USB 2.0 Hi-Speed Host, EHCI compatible, single port IC
  • Supports multiple bus interfaces. 8-bit or 16-bit bus for GPIO, SRAM or NOR Flash
  • Support Bulk, Isochronous, Control and Interrupt transfers
  • Split transaction support for external USB hubs
  • Single power supply operation at 3.3V
  • 1.8V, 2.5V and 3.3V IO levels supported
  • 24kBytes high speed RAM memory
  • Battery Charger Emulation (BCD 1.2) to allow downstream devices to request higher currents
  • Extended operating temperature range : -40°C to 85°C.
  • Available in Pb-free QFN-64, LQFP-64 and TQFP-64 packages (RoHS compliant).
Typical Applications
  • Connect memory sticks for high performance data transfers
    • Set top box file play back
    • Digital photo frames
    • Firmware upgrades
    • Industrial system analysis
  • Enable connection of a communication class device for system expansion and connectivity
    • Hosting RFID readers
    • Hosting Wi-Fi dongles
    • Hosting Zigbee dongles
  • Establish high speed data link between end-equipment subsystems
Product Information
Related Products

UMFT313EV Development Module – Evaluation Board for FT313H

For more information on these modules click here
