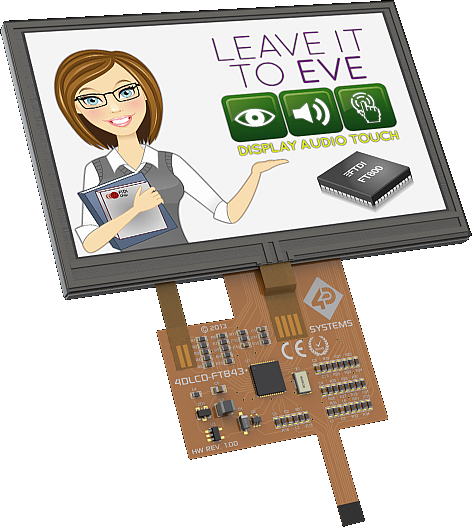

The 4DLCD-FT843 is an embedded SPI display from 4D Systems, featuring a 4.3" resistive touch display with FTDI Chip's Embedded Video Engine, EVE. The 4DLCD-FT843 is a powerful SPI Display which enables a SPI host to be connected directly to the display, providing a powerful set of graphics features to the host using the on board FTDI FT800 Video Engine.

This display provides 4 in one functionality, a 4.3" TFT LCD Display, Audio with amplifier enable, and Resistive Touch screen and an integrated Video Engine. This combination built directly into the screen allows for simple integration into a number of applications.

• Low Cost Display and Interface Solution - With 3 in 1 functionality including display, audio, and touch operations, FT800 graphics controller delivers unparalleled performance.
•
• Powerful Graphics - Twelve components (widgets) natively supported by FT800 chip, transparency support, anti-aliasing and other features will make your designs shine.
•
• 262k True to Life Colors - Now even 8-bit MCUs can run GUI devices without worrying about performance. FT800 easily handles the 262k colors 480 x 272 px resolution display.
• Available Now at $49/unit -

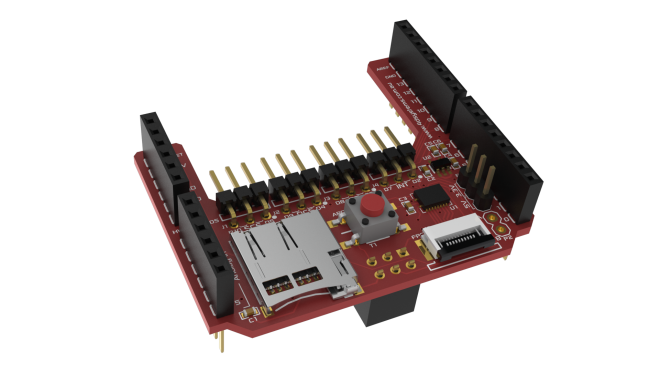

EVE meets ADAM......a tempting solution

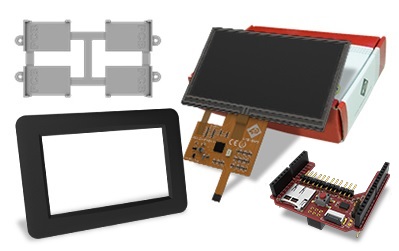

ADAM is also offered in a complete display system, the FT843+ADAM which comes complete with mounting plate and bezel.
Available Now at $69/unit.

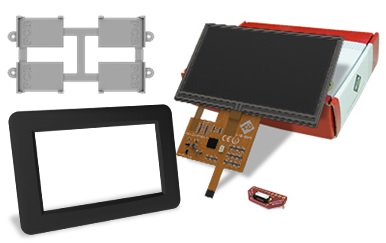

For systems that utilize other microcontrollers and require mounting plate and bezel, the FT843 system is offered. This system easily connects via SPI interface and header to chips with SPI master capability.
Available Now at $59/unit.
